In this post, we explore the boot process on both BIOS and UEFI-based systems. We combine the minimal kernel created in the previous post with a bootloader to create a bootable disk image. We then show how this image can be started in the QEMU emulator and run on real hardware.

This blog is openly developed on GitHub. If you have any problems or questions, please open an issue there. You can also leave comments at the bottom. The complete source code for this post can be found in the post-3.2 branch.

The Boot Process

When you turn on a computer, it begins executing firmware code that is stored in motherboard ROM. This code performs a power-on self-test, detects available RAM, and pre-initializes the CPU and other hardware. Afterwards it looks for a bootable disk and starts booting the operating system kernel.

On x86, there are two firmware standards: the “Basic Input/Output System“ (BIOS) and the newer “Unified Extensible Firmware Interface” (UEFI). The BIOS standard is outdated and not standardized, but relatively simple and supported on almost any x86 machine since the 1980s. UEFI, in contrast, is more modern and has much more features, but also more complex and only runs on fairly recent hardware (built since ~2012).

BIOS

Almost all x86 systems have support for BIOS booting, including most UEFI-based machines that support an emulated BIOS. This is great, because you can use the same boot logic across all machines from the last centuries. The drawback is that the standard is very old, for example the CPU is put into a 16-bit compatibility mode called real mode before booting so that archaic bootloaders from the 1980s would still work. Also, BIOS-compatibility will be slowly removed on newer UEFI machines over the next years (see below).

Boot Process

When you turn on a BIOS-based computer, it first loads the BIOS firmware from some special flash memory located on the motherboard. The BIOS runs self test and initialization routines of the hardware, then it looks for bootable disks. For that it loads the first disk sector (512 bytes) of each disk into memory, which contains the master boot record (MBR) structure. This structure has the following general format:

Offset	Field	Size
0	bootstrap code	446
446	partition entry 1	16
462	partition entry 2	16
478	partition entry 3	16
444	partition entry 4	16
510	boot signature	2

The bootstrap code is commonly called the bootloader and responsible for loading and starting the operating system kernel. The four partition entries describe the disk partitions such as the C: partition on Windows. The boot signature field at the end of the structure specifies whether this disk is bootable or not. If it is bootable, the signature field must be set to the magic bytes 0xaa55. It's worth noting that there are many extensions of the MBR format, which for example include a 5th partition entry or a disk signature.

The BIOS itself only cares for the boot signature field. If it finds a disk with a boot signature equal to 0xaa55, it directly passes control to the bootloader code stored at the beginning of the disk. This bootloader is then responsible for multiple things:

• Loading the kernel from disk: The bootloader has to determine the location of the kernel image on the disk and load it into memory.
• Initializing the CPU: As noted above, all x86_64 CPUs start up in a 16-bit real mode to be compatible with older operating systems. So in order to run current 64-bit operating systems, the bootloader needs to switch the CPU from the 16-bit real mode first to the 32-bit protected mode, and then to the 64-bit long mode, where all CPU registers and the complete main memory are available.
• Querying system information: The third job of the bootloader is to query certain information from the BIOS and pass it to the OS kernel. This, for example, includes information about the available main memory and graphical output devices.
• Setting up an execution environment: Kernels are typically stored as normal executable files (e.g. in the ELF or PE format), which require some loading procedure. This includes setting up a call stack and a page table.

Some bootloaders also include a basic user interface for choosing between multiple installed OSs or entering a recovery mode. Since it is not possible to do all that within the available 446 bytes, most bootloaders are split into a small first stage, which is as small as possible, and a second stage, which is subsequently loaded by the first stage.

Writing a BIOS bootloader is cumbersome as it requires assembly language and a lot of non insightful steps like “write this magic value to this processor register”. Therefore we don't cover bootloader creation in this post and instead use the existing bootloader crate to make our kernel bootable.

(If you are interested in building your own BIOS bootloader, you can look through the BIOS source code of the bootloader crate on GitHub, which is mostly written in Rust and has only about 50 lines of assembly code.)

The Future of BIOS

As noted above, most modern systems still support booting operating systems written for the legacy BIOS firmware for backwards-compatibility. However, there are plans to remove this support soon. Thus, it is strongly recommended to make operating system kernels compatible with the newer UEFI standard too. Fortunately, it is possible to create a kernel that supports booting on both BIOS (for older systems) and UEFI (for modern systems).

UEFI

The Unified Extensible Firmware Interface (UEFI) replaces the classical BIOS firmware on most modern computers. The specification provides lots of useful features that make bootloader implementations much simpler:

• It supports initializing the CPU directly into 64-bit mode, instead of starting in a DOS-compatible 16-bit mode like the BIOS firmware.
• It understands disk partitions and executable files. Thus it is able to fully load the bootloader from disk into memory (no 512-byte "first stage" is required anymore).
• A standardized specification minimizes the differences between systems. This isn't the case for the legacy BIOS firmware, so that bootloaders often have to try different methods because of hardware differences.
• The specification is independent of the CPU architecture, so that the same interface can be used to boot on x86_64 and e.g. ARM CPUs.
• It natively supports network booting without requiring additional drivers.

The UEFI standard also tries to make the boot process safer through a so-called "secure boot" mechanism. The idea is that the firmware only allows loading bootloaders that are signed by a trusted digital signature. Thus, malware should be prevented from compromising the early boot process.

Issues & Criticism

While most of the UEFI specification sounds like a good idea, there are also many issues with the standard. The main issue for most people is the fear that the secure boot mechanism could be used to lock users into a specific operating system (e.g. Windows) and thus prevent the installation of alternative operating systems.

Another point of criticism is that the large number of features make the UEFI firmware very complex, which increases the chance that there are some bugs in the firmware implementation itself. This can lead to security problems because the firmware has complete control over the hardware. For example, a vulnerability in the built-in network stack of an UEFI implementation can allow attackers to compromise the system and e.g. silently observe all I/O data. The fact that most UEFI implementations are not open-source makes this issue even more problematic, since there is no way to audit the firmware code for potential bugs.

While there are open firmware projects such as coreboot that try to solve these problems, there is no way around the UEFI standard on most modern consumer computers. So we have to live with these drawbacks for now if we want to build a widely compatible bootloader and operating system kernel.

Boot Process

The UEFI boot process works in the following way:

• After powering on and self-testing all components, the UEFI firmware starts looking for special bootable disk partitions called EFI system partitions. These partitions must be formatted with the FAT file system and assigned a special ID that indicates them as EFI system partition. The UEFI standard understands both the MBR and GPT partition table formats for this, at least theoretically. In practice, some UEFI implementations seem to directly switch to BIOS-style booting when an MBR partition table is used, so it is recommended to only use the GPT format with UEFI.
• If the firmware finds an EFI system partition, it looks for an executable file named efi\boot\bootx64.efi (on x86_64 systems). This executable must use the Portable Executable (PE) format, which is common in the Windows world.
• It then loads the executable from disk to memory, sets up the execution environment (CPU state, page tables, etc.) in a standardized way, and finally jumps to the entry point of the loaded executable.

From this point on, the loaded executable has control. Typically, this executable is a bootloader that then loads the actual operating system kernel. Theoretically, it would also be possible to let the UEFI firmware load the kernel directly without a bootloader in between, but this would make it more difficult to port the kernel to other architectures.

Bootloaders and kernels typically need additional information about the system, for example the amount of available memory. For this reason, the UEFI firmware passes a pointer to a special system table as an argument when invoking the bootloader entry point function. Using this table, the bootloader can query various system information and even invoke special functions provided by the UEFI firmware, for example for accessing the hard disk.

How we will use UEFI

As it is probably clear at this point, the UEFI interface is very powerful and complex. The wide range of functionality makes it even possible to write an operating system directly as an UEFI application, using the UEFI services provided by the system table instead of creating own drivers. In practice, however, most operating systems use UEFI only for the bootloader since own drivers give you better performance and more control over the system. We will also follow this path for our OS implementation.

To keep this post focused, we won't cover the creation of an UEFI bootloader here. Instead, we will use the already mentioned bootloader crate, which allows loading our kernel on both UEFI and BIOS systems. If you're interested in how to create an UEFI bootloader yourself, check out our extra post about UEFI Booting.

The Multiboot Standard

To avoid that every operating system implements its own bootloader that is only compatible with a single OS, the Free Software Foundation created an open bootloader standard called Multiboot in 1995. The standard defines an interface between the bootloader and operating system, so that any Multiboot compliant bootloader can load any Multiboot compliant operating system on both BIOS and UEFI systems. The reference implementation is GNU GRUB, which is the most popular bootloader for Linux systems.

To make a kernel Multiboot compliant, one just needs to insert a so-called Multiboot header at the beginning of the kernel file. This makes it very easy to boot an OS in GRUB. However, GRUB and the Multiboot standard have some issues too:

• The standard is designed to make the bootloader simple instead of the kernel. For example, the kernel needs to be linked with an adjusted default page size, because GRUB can't find the Multiboot header otherwise. Another example is that the boot information, which is passed to the kernel, contains lots of architecture-dependent structures instead of providing clean abstractions.
• The standard supports only the 32-bit protected mode on BIOS systems. This means that you still have to do the CPU configuration to switch to the 64-bit long mode.
• For UEFI systems, the standard provides very little added value as it simply exposes the normal UEFI interface to kernels.
• Both GRUB and the Multiboot standard are only sparsely documented.
• GRUB needs to be installed on the host system to create a bootable disk image from the kernel file. This makes development on Windows or Mac more difficult.

Because of these drawbacks we decided to not use GRUB or the Multiboot standard for this series. However, we might add Multiboot support to our bootloader crate at some point, so that it becomes possible to load your kernel on a GRUB system too. If you're interested in writing a Multiboot compliant kernel, check out the first edition of this blog series.

Bootable Disk Image

We now know that most operating system kernels are loaded by bootloaders, which are small programs that initialize the hardware to reasonable defaults, load the kernel from disk, and provide it with some fundamental information about the underlying system. In this section, we will learn how to combine the minimal kernel we created in the previous post with the bootloader crate in order to create a bootable disk image.

The bootloader crate supports both BIOS and UEFI booting on x86_64 and creates a reasonable default execution environment for our kernel. This way, we can focus on the actual kernel design in the following posts instead of spending a lot of time on system initialization.

The bootloader_api Crate

In order to make our kernel compatible with the bootloader crate, we first need to add a dependency on the bootloader_api crate:

# in Cargo.toml

[dependencies]
bootloader_api = "0.11.2"

Now we need to replace our custom _start entry point function with bootloader_api::entry_point macro. This macro instructs the compiler to create a special .bootloader-config section with encoded configuration options in the resulting executable, which is later read by the bootloader implementation.

We will take a closer look at the entry_point macro and the different configuration options later. For now, we just use the default setup:

// in main.rs

bootloader_api::entry_point!(kernel_main);

// ↓ this replaces the `_start` function ↓
fn kernel_main(_bootinfo: &'static mut bootloader_api::BootInfo) -> ! {
    loop {}
}

There are a few notable things:

• The kernel_main function is just a normal Rust function with an arbitrary name. No #[no_mangle] attribute is needed anymore since the entry_point macro handles this internally.
• Like before, our entry point function is diverging, i.e. it must never return. We ensure this by looping endlessly.
• There is a new BootInfo argument, which the bootloader fills with various system information. We will use this argument later. For now, we prefix it with an underscore to avoid an "unused variable" warning.
• The entry_point macro verifies that the kernel_main function has the correct arguments and return type, otherwise a compile error will occur. This is important because undefined behavior might occur when the function signature does not match the bootloader's expectations.

To verify that the entry_point macro worked as expected, we can use the objdump tool as described in the previous post. First, we recompile using cargo build --target x86_64-unknown-none, then we inspect the section headers using objdump or rust-objdump:

❯ rust-objdump -h target/x86_64-unknown-none/debug/kernel

target/x86_64-unknown-none/debug/kernel:        file format elf64-x86-64

Sections:
Idx Name               Size     VMA              Type
  0                    00000000 0000000000000000
  1 .bootloader-config 0000007c 0000000000200120 DATA
  2 .text              00000075 00000000002011a0 TEXT
  3 .debug_abbrev      000001c8 0000000000000000 DEBUG
  4 .debug_info        00000b56 0000000000000000 DEBUG
  5 .debug_aranges     00000090 0000000000000000 DEBUG
  6 .debug_ranges      00000040 0000000000000000 DEBUG
  7 .debug_str         00000997 0000000000000000 DEBUG
  8 .debug_pubnames    0000014c 0000000000000000 DEBUG
  9 .debug_pubtypes    00000548 0000000000000000 DEBUG
 10 .debug_frame       000000b0 0000000000000000 DEBUG
 11 .debug_line        0000012c 0000000000000000 DEBUG
 12 .comment           00000013 0000000000000000
 13 .symtab            000000a8 0000000000000000
 14 .shstrtab          000000b8 0000000000000000
 15 .strtab            000000cd 0000000000000000

We see that there is indeed a new .bootloader-config section of size 0x7c in our kernel executable. This means that we can now look into how to create a bootable disk image from our kernel.

Creating a Disk Image

Now that our kernel is compatible with the bootloader crate, we can turn it into a bootable disk image. To do that, we need to create a disk image file with an MBR or GPT partition table and create a new FAT boot partition there. Then we copy our compiled kernel and the compiled bootloader to this boot partition.

While we could perform these steps manually using platform-specific tools (e.g. mkfs on Linux), this would be cumbersome to use and difficult to set up. Fortunately, the bootloader crate provides a cross-platform DiskImageBuilder type to construct BIOS and UEFI disk images. We just need to pass path to our kernel executable and then call create_bios_image and/or create_uefi_image with our desired target path.

By using the DiskImageBuilder together with some advanced features of cargo, we can combine the kernel build and disk image creation steps. Another advantage of this approach is that we don't need to pass the --target x86_64-unknown-none argument anymore. In the next sections, we will implement following steps to achieve this:

• Create a cargo workspace with an empty root package.
• Add an artifact dependency to include the compiled kernel binary in the root package.
• Invoke the bootloader::DiskImageBuilder in our new root package.

Don't worry if that sounds a bit complex! We will explain each of these steps in detail.

Creating a Workspace

Cargo provides a feature named workspaces to manage projects that consistent of multiple crates. The idea is that the crates share a single Cargo.lock file (to pin dependencies) and a common target folder. The different crates can depend on each other by specifying path dependencies.

Creating a cargo workspace is easy. We first create a new subfolder named kernel and move our existing Cargo.toml file and src folder there. We keep the Cargo.lock file and the target folder in the outer level, cargo will update them automatically. The folder structure should look like this now:

.
├── Cargo.lock
├── kernel
│   ├── Cargo.toml
│   └── src
│       └── main.rs
└── target

Next, we create a new blog_os crate at the root using cargo init:

❯ cargo init --name blog_os

You can of course choose any name you like for the crate. The command creates a new src/main.rs at the root with a main function printing "Hello, world!". It also creates a new Cargo.toml file at the root. The directory structure now looks like this:

.
├── Cargo.lock
├── Cargo.toml
├── kernel
│   ├── Cargo.toml
│   └── src
│       └── main.rs
├── src
│   └── main.rs
└── target

The final step is to add the workspace configuration to the Cargo.toml at the root:

# in top-level Cargo.toml

[package]
name = "blog_os"
version = "0.1.0"
edition = "2021"

[workspace]
members = ["kernel"]

[dependencies]

That's it! Now our blog_os and kernel crates live in the same workspace. To ensure that everything works as intended, we can run cargo tree to list all the packages in the workspace:

❯ cargo tree --workspace
blog_os v0.1.0 (/.../os)

kernel v0.1.0 (/.../os/kernel)
└── bootloader_api v0.11.3

We see that both the blog_os and the kernel crates are listed, which means that cargo recognizes that they're both part of the same workspace.

If you're getting a "profiles for the non root package will be ignored" warning here, you probably still have a manual panic = "abort" override specified in your kernel/Cargo.toml. This override is no longer needed since we compile our kernel for the x86_64-unknown-none target, which uses panic = "abort" by default. So to fix this warning, just remove the profile.dev and profile.release tables from your kernel/Cargo.toml file.

We now have a simple cargo workspace and a new blog_os crate at the root. But what do we need that new crate for?

Adding an Artifact Dependency

The reason that we added the new blog_os crate is that we want to do something with our compiled kernel. Cargo provides an useful feature for this, called artifact dependencies. The basic idea is that crates can depend on compiled artifacts (e.g. executables) of other crates. This is especially useful for artifacts that need to be compiled for a specific target, such as our OS kernel.

Unfortunately, artifact dependencies are still an unstable feature and not available on stable Rust/Cargo releases yet. This means that we need to use a nightly Rust release for now.

Nightly Rust

As the name implies, nightly releases are created every night from the latest master commit of the rust-lang/rust project. While there is some risk of breakage on the nightly channel, it only occurs very seldomly thanks to extensive checks on the Rust CI. Most of the time, breakage only affects unstable features, which require an explicit opt-in. So by limiting the number of used unstable features as much as possible, we can get a quite stable experience on the nightly channel. In case something does go wrong, rustup makes it easy to switch back to an earlier nightly until the issue is resolved.

What is rustup?

The rustup tool is the officially recommended way of installing Rust. It supports having multiple versions of Rust installed simultaneously and makes upgrading Rust easy. It also provides access to optional tools and components such as rustfmt or rust-analyzer. This guide requires rustup, so please install it if you haven't already.

Using Nightly Rust

To use nightly Rust for our project, we create a new rust-toolchain.toml file in the root directory of our project:

[toolchain]
channel = "nightly"
targets = ["x86_64-unknown-none"]

The channel field specifies which [toolchain] to use. In our case, we want to use the latest nightly compiler. We could also specify a specific nightly here, e.g. nightly-2023-04-30, which can be useful when there is some breakage in the newest nightly. In the targetslist, we can specify additional targets that we want to compile to. In our case, we specify thex86_64-unknown-none` target that we use for our kernel.

Rustup automatically reads the rust-toolchain.toml file and sets up the requested Rust version when running a cargo or rustc command in this folder, or a subfolder. We can try this by running cargo --version:

❯ cargo --version
info: syncing channel updates for 'nightly-x86_64-unknown-linux-gnu'
info: latest update on 2023-04-30, rust version 1.71.0-nightly (87b1f891e 2023-04-29)
info: downloading component 'cargo'
info: downloading component 'clippy'
info: downloading component 'rust-docs'
info: downloading component 'rust-std'
info: downloading component 'rust-std' for 'x86_64-unknown-none'
info: downloading component 'rustc'
info: downloading component 'rustfmt'
info: installing component 'cargo'
info: installing component 'clippy'
info: installing component 'rust-docs'
info: installing component 'rust-std'
info: installing component 'rust-std' for 'x86_64-unknown-none'
info: installing component 'rustc'
info: installing component 'rustfmt'
cargo 1.71.0-nightly (9e586fbd8 2023-04-25)

We see that rustup automatically downloads and install the nightly version of all Rust components. This is of course only done once, if the requested toolchain is not installed yet. To list all installed toolchains, use rustup toolchain list. Updating toolchains is possible through rustup update.

Enabling Artifact Dependencies

Now that we've installed a nightly version of Rust, we can opt-in to the unstable artifact dependency feature. To do this, we create a new folder named .cargo in the root of our project. Inside that folder, we create a new cargo configuration file named config.toml:

# .cargo/config.toml

[unstable]
bindeps = true

Creating an Artifact Dependency

After switching to nightly Rust and enabling the unstable bindeps feature, we can finally add an artifact dependency on our compiled kernel. For this, we update the dependency table of our blog_os crate:

[package]
name = "blog_os"
version = "0.1.0"
edition = "2021"

[workspace]
members = ["kernel"]

[dependencies]
kernel = { path = "kernel", artifact = "bin", target = "x86_64-unknown-none" }

We specify that the kernel crate lives in the kernel subdirectory through the path key. The artifact = "bin" key specifies that we're interested in the compiled kernel binary (this makes the dependency an artifact dependency). Finally, we use the target key to specify that our kernel binary should be compiled for the x86_64-unknown-none target.

Now cargo will automatically build our kernel before building our blog_os crate. We can see this when building the blog_os crate using cargo build:

❯ cargo build
   Compiling bootloader_api v0.11.3
   Compiling kernel v0.1.0 (/.../os/kernel)
   Compiling blog_os v0.1.0 (/.../os)
    Finished dev [unoptimized + debuginfo] target(s) in 0.51s

The blog_os crate should be built for our host system, so we don't specify a --target argument. Cargo uses the same profile for compiling the blog_os and kernel crates, so cargo build --release will also build the kernel binary with optimizations enabled.

Now that we have set up an artifact dependency on our kernel, we can finally create the bootable disk image.

Using the DiskImageBuilder

The last step to create the bootable disk image is to invoke the DiskImageBuilder of the bootloader crate. For that, we first add a dependency on the bootloader crate to our blog_os crate:

# in root Cargo.toml

[dependencies]
kernel = { path = "kernel", artifact = "bin", target = "x86_64-unknown-none" }
bootloader = "0.11.3"

The crate requires the llvm-tools component of rustup, which is not installed by default. To install it, we update our rust-toolchain.toml file:

# rust-toolchain.toml

[toolchain]
channel = "nightly"
targets = ["x86_64-unknown-none"]
components = ["llvm-tools-preview"]

If we run cargo build now, the bootloader should be built as a dependency. The initial build will take a long time, but it should finish without errors. Please open an issue in the rust-osdev/bootloader repository if you encounter any issues.

Now we can use the DiskImageBuilder in the main function of our blog_os crate:

// src/main.rs

use bootloader::DiskImageBuilder;
use std::path::PathBuf;

fn main() {
    // set by cargo for the kernel artifact dependency
    let kernel_path = PathBuf::from(env!("CARGO_BIN_FILE_KERNEL"));
    let disk_builder = DiskImageBuilder::new(kernel_path);
}

Cargo communicates the path of artifact dependencies through environment variables. For our kernel dependency, the environment variable name is CARGO_BIN_FILE_KERNEL. The environment variable is set at build time, so we can use the env! macro to read it. We then wrap convert it to a PathBuf because that's the type that DiskImageBuilder::new expects.

Now we need to decide where we want to place the disk images. This is entirely up to. In the following, we will place the images next to blog_os executable, which will be under target/debug (for development builds) or target/release (for optimized builds):

use bootloader::DiskImageBuilder;
use std::{env, error::Error, path::PathBuf};

fn main() -> Result<(), Box<dyn Error>> {
    // set by cargo for the kernel artifact dependency
    let kernel_path = PathBuf::from(env!("CARGO_BIN_FILE_KERNEL"));
    let disk_builder = DiskImageBuilder::new(kernel_path);

    // place the disk image files under target/debug or target/release
    let target_dir = env::current_exe()?;

    Ok(())
}

We use the std::env::current_exe function to get the path to the blog_os executable. This function can (rarely) fail, so we add some basic error handling to our main function. For that, we change the return value of the function to a Result with a dynamic error type (a trait object of the Error trait). This allows us to use the ? operator to exit with an error code on error.

The final step is to actually create the UEFI and BIOS disk images:

use bootloader::DiskImageBuilder;
use std::{env, error::Error, path::PathBuf};

fn main() -> Result<(), Box<dyn Error>> {
    // set by cargo for the kernel artifact dependency
    let kernel_path = PathBuf::from(env!("CARGO_BIN_FILE_KERNEL"));
    let disk_builder = DiskImageBuilder::new(kernel_path);

    // place the disk image files under target/debug or target/release
    let target_dir = env::current_exe()?;

    let uefi_path = target_dir.with_file_name("blog_os-uefi.img");
    disk_builder.create_uefi_image(&uefi_path)?;
    println!("Created UEFI disk image at {}", uefi_path.display());

    let bios_path = target_dir.with_file_name("blog_os-bios.img");
    disk_builder.create_bios_image(&bios_path)?;
    println!("Created BIOS disk image at {}", bios_path.display());

    Ok(())
}

We use the PathBuf::with_file_name method to create the target paths for the disk images. To create the images, we call the create_uefi_image and create_bios_image methods of DiskImageBuilder. Finally, we print the full paths to the created files.

Now we can use a simple cargo run to cross-compile our kernel, build the bootloader, and combine them to create a bootable disk image:

❯ cargo run
   Compiling kernel v0.1.0 (/.../os/kernel)
   Compiling blog_os v0.1.0 (/.../os)
    Finished dev [unoptimized + debuginfo] target(s) in 0.52s
     Running `target/debug/blog_os`
Created UEFI disk image at /.../os/target/debug/blog_os-uefi.img
Created BIOS disk image at /.../os/target/debug/blog_os-bios.img

Cargo will automatically detect when our kernel code is modified and recompile the dependent blog_os crate.

Making rust-analyzer happy

TODO

Running our Kernel

After creating a bootable disk image for our kernel, we are finally able to run it. Before we learn how to run it on real hardware, we start by running it inside the QEMU system emulator. This has multiple advantages:

• We can't break anything: Our kernel has full hardware access, so that a bug might have serious consequences on real hardware.
• We don't need a separate computer: QEMU runs as a normal program on our development computer.
• The edit-test cycle is much faster: We don't need to copy the disk image to bootable usb stick on every kernel change.
• It's possible to debug our kernel via QEMU's debug tools and GDB.

We will still learn how to boot our kernel on real hardware later in this post, but for now we focus on QEMU. For that you need to install QEMU on your machine as described on the QEMU download page.

Running in QEMU

After installing QEMU, you can run qemu-system-x86_64 --version in a terminal to verify that it is installed. Then you can run the BIOS disk image of our kernel through the following command:

qemu-system-x86_64 -drive \
    format=raw,file=bootimage-bios-blog_os.img

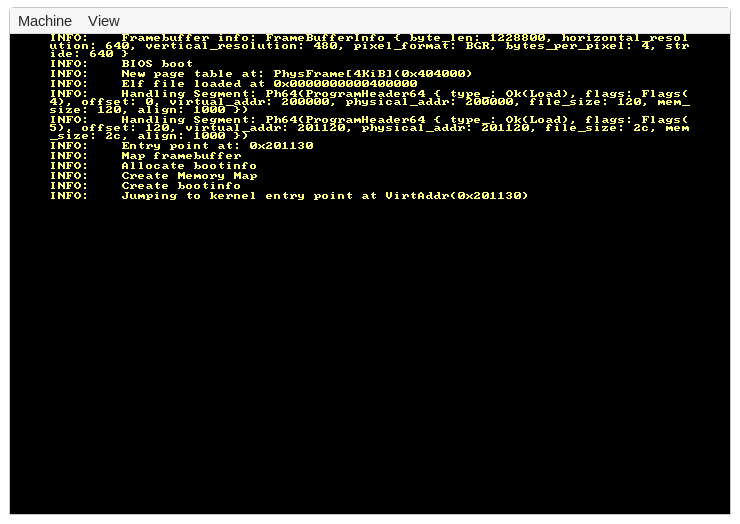

As a result, you should see a window open that looks like this:

This output comes from the bootloader. As we see, the last line is "Jumping to kernel entry point at […]". This is the point where the _start function of our kernel is called. Since we currently only loop {} in that function nothing else happens, so it is expected that we don't see any additional output.

Running the UEFI disk image works in a similar way, but we need to pass some additional files to QEMU to emulate an UEFI firmware. This is necessary because QEMU does not support emulating an UEFI firmware natively. The files that we need are provided by the Open Virtual Machine Firmware (OVMF) project, which is a sub-project of TianoCore and implements UEFI support for virtual machines. Unfortunately, the project is only sparsely documented and does not even have a clear homepage.

The easiest way to work with OVMF is to download pre-built images of the code. We provide such images in the rust-osdev/ovmf-prebuilt repository, which is updated daily from Gerd Hoffman's RPM builds. The compiled OVMF are provided as GitHub releases.

To run our UEFI disk image in QEMU, we need the OVMF_pure-efi.fd file (other files might work as well). After downloading it, we can then run our UEFI disk image using the following command:

qemu-system-x86_64 -drive \
    format=raw,file=bootimage-uefi-blog_os.img \
    -bios /path/to/OVMF_pure-efi.fd,

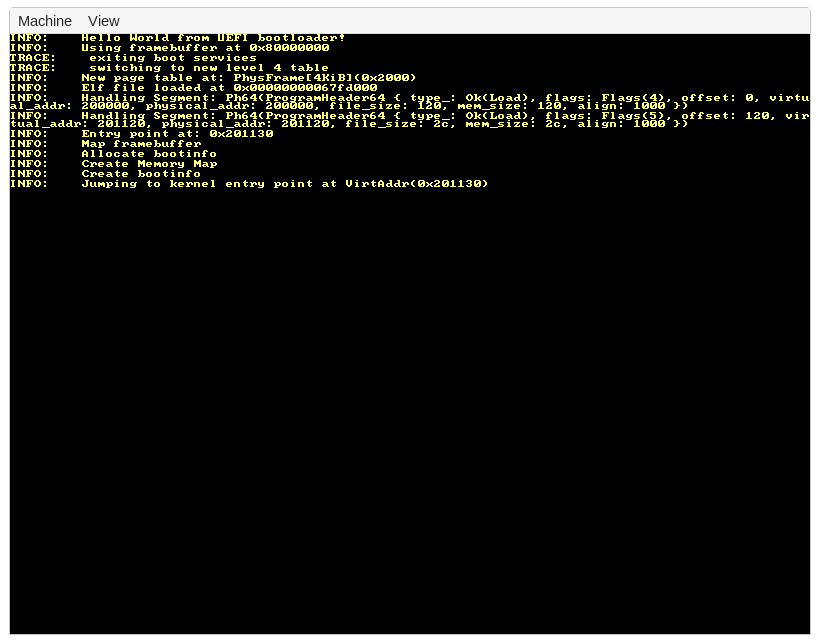

If everything works, this command opens a window with the following content:

The output is a bit different than with the BIOS disk image. Among other things, it explicitly mentions that this is an UEFI boot right on top.

Using cargo run

TODO

Screen Output

While we see some screen output from the bootloader, our kernel still does nothing. Let's fix this by trying to output something to the screen from our kernel too.

Screen output works through a so-called framebuffer. A framebuffer is a memory region that contains the pixels that should be shown on the screen. The graphics card automatically reads the contents of this region on every screen refresh and updates the shown pixels accordingly.

Since the size, pixel format, and memory location of the framebuffer can vary between different systems, we need to find out these parameters first. The easiest way to do this is to read it from the boot information structure that the bootloader passes as argument to our kernel entry point:

// in src/main.rs

fn kernel_main(boot_info: &'static mut BootInfo) -> ! {
    if let Some(framebuffer) = boot_info.framebuffer.as_ref() {
        let info = framebuffer.info();
        let buffer = framebuffer.buffer();
    }
    loop {}
}

Even though most systems support a framebuffer, some might not. The BootInfo type reflects this by specifying its framebuffer field as an Option. Since screen output won't be essential for our kernel (there are other possible communication channels such as serial ports), we use an if let statement to run the framebuffer code only if a framebuffer is available.

The FrameBuffer type provides two methods: The info method returns a FrameBufferInfo instance with all kinds of information about the framebuffer format, including the pixel type and the screen resolution. The buffer method returns the actual framebuffer content in form of a mutable byte slice.

We will look into programming the framebuffer in detail in the next post. For now, let's just try setting the whole screen to some color. For this, we just set every pixel in the byte slice to some fixed value:

// in src/main.rs

fn kernel_main(boot_info: &'static mut BootInfo) -> ! {
    if let Some(framebuffer) = boot_info.framebuffer.as_mut() {
        for byte in framebuffer.buffer_mut() {
            *byte = 0x90;
        }
    }
    loop {}
}

While it depends on the pixel color format how these values are interpreted, the result will likely be some shade of gray since we set the same value for every color channel (e.g. in the RGB color format).

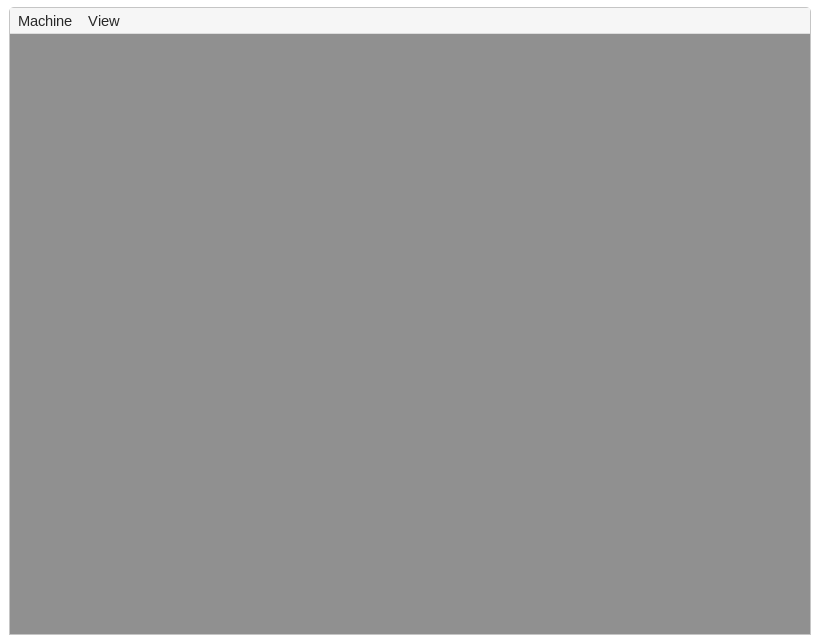

After running cargo kbuild and then our boot script again, we can boot the new version in QEMU. We see that our guess that the whole screen would turn gray was right:

We finally see some output from our own little kernel!

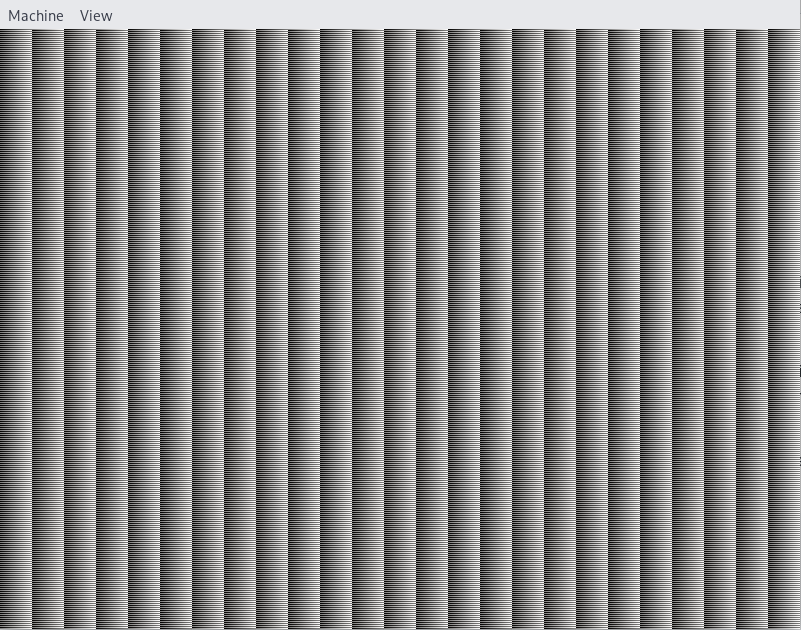

You can try experimenting with the pixel bytes if you like, for example by increasing the pixel value on each loop iteration:

// in src/main.rs

fn kernel_main(boot_info: &'static mut BootInfo) -> ! {
    if let Some(framebuffer) = boot_info.framebuffer.as_mut() {
        let mut value = 0x90;
        for byte in framebuffer.buffer_mut() {
            *byte = value;
            value = value.wrapping_add(1);
        }
    }
    loop {}
}

We use the [wrapping_add] method here because Rust panics on implicit integer overflow (at least in debug mode). By adding a prime number, we try to add some variety. The result looks as follows:

Booting on Real Hardware

To boot on real hardware, you first need to write either the bootimage-uefi-blog_os.img or the bootimage-bios-blog_os.img disk image to an USB stick. This deletes everything on the stick, so be careful. The actual steps to do this depend on your operating system.

Unix-like

On any Unix-like host OS (including both Linux and macOS), you can use the dd command to write the disk image directly to a USB drive. First run either sudo fdisk -l (on Linux) or diskutil list (on a Mac) to get info about where in /dev the file representing your device is located. After that, open a terminal window and run either of the following commands:

Linux

# replace /dev/sdX with device filename as revealed by "sudo fdisk -l"
$ sudo dd if=boot-uefi-blog_os.img of=/dev/sdX

macOS

# replace /dev/diskX with device filename as revealed by "diskutil list"
$ sudo dd if=boot-uefi-blog_os.img of=/dev/diskX

WARNING: Be very careful when running this command. If you specify the wrong device as the of= parameter, you could end up wiping your system clean, so make sure the device you run it on is a removable one.

Windows

On Windows, you can use the Rufus tool, which is developed as an open-source project on GitHub. After downloading it you can directly run it, there's no installation necessary. In the interface, you select the USB stick you want to write to.

OLD

The docs of the bootloader crate describe how to create a bootable disk image for a kernel. The first step is to find the directory where cargo placed the source code of the bootloader dependency. Then, a special build command needs to be executed in that directory, passing the paths to the kernel binary and its Cargo.toml as arguments. This will result in multiple disk image files as output, which can be used to boot the kernel on BIOS and UEFI systems.

A boot crate

Since following these steps manually is cumbersome, we create a script to automate it. For that we create a new boot crate in a subdirectory, in which we will implement the build steps:

cargo new --bin boot

This command creates a new boot subfolder with a Cargo.toml and a src/main.rs in it. Since this new cargo project will be tightly coupled with our main project, it makes sense to combine the two crates as a cargo workspace. This way, they will share the same Cargo.lock for their dependencies and place their compilation artifacts in a common target folder. To create such a workspace, we add the following to the Cargo.toml of our main project:

# in Cargo.toml

[workspace]
members = ["boot"]

After creating the workspace, we can begin the implementation of the boot crate. Note that the crate will be invoked as part as our build process, so it can be a normal Rust executable that runs on our host system. This means that is has a classical main function and can use standard library types such as Path or Command without problems.

Artifact Dependencies

The first step in creating the bootable disk image is to enable support for artifact dependencies from inside your kernel's .cargo/config.toml because we're going to need that support later:

# in .cargo/config.toml

[unstable]
bindeps = true

After this, you need to add an artifact dependency on your kernel from inside the boot crate. This tells the bootloader crate where the source code to your kernel resides:

# in boot/Cargo.toml

[dependencies]
kernel = { path = "..", artifact = "bin", target = "x86_64-unknown-none" }

Finally, you need to add a dependency on the main bootloader crate. Previous versions used bootloader_locator instead, but now, thanks to artifact dependencies, that is no longer necessary.

# in boot/Cargo.toml

[dependencies]
bootloader = "0.11.0"

We can see how this works by printing the Cargo-generated environment variable pointing to the absolute path of the kernel binary

// in boot/src/main.rs
use std::path::Path;      // new

pub fn main() {
    let kernel_binary = Path::new(env!("CARGO_BIN_FILE_KERNEL_kernel"));
    dbg!(kernel_binary);
}

The CARGO_BIN_FILE_KERNEL_kernel environment variable is defined by Cargo as the absolute path to the binary file created after compiling an artifact dependency — and in this case, the binary file it points to is your kernel's binary. This makes it very easy to begin the process of boot image creation, as explained in detail below.

To run the boot crate from our workspace root (i.e. the kernel directory), we can pass a --package argument to cargo run:

> cargo run --package boot
[boot/src/main.rs:5] kernel_path = "/.../target/x86_64-unknown-none/debug/deps/artifact/kernel-.../bin/kernel-..."

It worked! We see that the kernel binary lives somewhere in the dependency tree of our boot crate. By depending on the kernel as a binary dependency of boot, we ensure that the bootloader and the kernel use the exact same version of the BootInfo type. This is important because the BootInfo type is not stable yet, so undefined behavior can occur when when using different BootInfo versions.

Building a Boot Image

The next step is to actually build the boot image. From the bootloader docs we learn that the crate defines two completely unique bootloader objects: BiosBoot for BIOS and UefiBoot for UEFI. To keep it simple, we will support both, although it's possible to choose which to exclusively support later to keep your workflow streamlined as your kernel becomes more complex.

# in boot/Cargo.toml

[dependencies]
bootloader = "0.11.0"
kernel = { path = "..", artifact = "bin", target = "x86_64-unknown-none" }

Once all dependencies are accounted for, it's time to put everything together:

// in boot/src/main.rs

// new
use bootloader::{BiosBoot, UefiBoot}
use std::{path::Path, process::exit};

pub fn main() {
    // new code below

    let kernel_dir = todo!();
    let bios_image = todo!();
    let uefi_image = todo!();

    // invoke UEFI boot image builder
    let uefi = UefiBoot::new(&kernel_binary);

    // invoke BIOS boot image builder
    let bios = BiosBoot::new(&kernel_binary);

    // attempt to create UEFI boot image
    if let Err(e) = uefi.create_disk_image(&uefi_path) {
        eprintln!("{:#?}", &e);
        exit(1)
    }

    // attempt to create BIOS boot image
    if let Err(e) = bios.create_disk_image(&bios_path) {
        eprintln!("{:#?}", &e);
        exit(1)
    }
}

We use both the UefiBoot and BiosBoot types to create disk images for the BIOS and UEFI implementations, respectively. By using the if let syntax, we can exit the build gracefully whenever an error occurs.

After creating the UefiBoot and BiosBoot types using the CARGO_BIN_FILE_KERNEL_kernel environment variable that we went over previously as the constructor argument for both, we now are ready for the next step.

Filling in the Blanks

We still need to fill in the paths we marked as todo! above. Like with the kernel binary, we can also use the env!() builtin for this, since another environment variable can also be used as a reference point for determining the filenames for the disk images:

// in `main` in boot/src/main.rs

// we know that the kernel lives in the parent directory of the `boot` crate
let kernel_dir = Path::new(env!("CARGO_MANIFEST_DIR")).manifest_dir.parent().unwrap();

// use the above as a target folder in which to place both the BIOS and UEFI disk images
let bios_image = kernel_dir.join("bootimage-bios-blog_os.img");
let uefi_image = kernel_dir.join("bootimage-uefi-blog_os.img");

The CARGO_MANIFEST_DIR environment variable always points to the boot directory, even if the crate is built from a different directory (e.g. via cargo's --manifest-path argument). This gives use a good starting point for creating the paths we care about since we know that our kernel lives in the parent directory.

From the kernel_dir, we can then construct the bios_image and uefi_image paths using the Path::join method.

Creating the Disk Images

There is one last step before we can create the bootable disk images: The bootloader build requires the rustup component llvm-tools-preview. To install it, we can either run rustup component add llvm-tools-preview or specify it in our rust-toolchain.toml file:

# in rust-toolchain.toml

[toolchain]
channel = "nightly"
components = ["rust-src", "rustfmt", "clippy", "llvm-tools-preview"]

After that can finally use our boot crate to create some bootable disk images from our kernel:

> cargo run --package boot

Because we're using artifact dependencies, when you run the boot package, the kernel is automatically pulled in and compiled as a dependency. Previously, in version 0.10 of the bootloader crate, you had to build the kernel binary first, but now, thanks to artifact dependencies, this is no longer required. Note that the command will only work from the root directory of our project. This is because we hardcoded the kernel_binary path in our main function. We will fix this later in the post, but first it is time to actually run our kernel!

Note also that we specified names for the image files. Although we used bootimage-bios-blog_os.img and bootimage-uefi-blog_os.img for compatibility, they can now be given whatever names you see fit.
